USplineMeshedComponent Class Reference

Core component that handles meshes spawning along spline. More...

#include <SplineMeshedComponent.h>

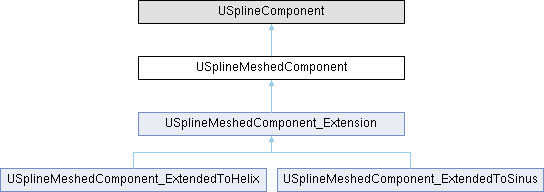

Inheritance diagram for USplineMeshedComponent:

Public Member Functions
void	PlaceMeshesAlongSpline (UStaticMesh *Mesh, const FSplineMeshedSpawnParams SpawnParameters)
	Spawn meshes along spline by given params. Override if you intend to clear/set variables before spawning meshes.
void	GetMeshPositonsArray (TArray< FYasiuSplineMeshParams > &OutArray, const UStaticMesh *Mesh, const FSplineMeshedSpawnParams &paramsIn) const
	Function that evaluates mesh position and tangent based on params passed in.
void	OnMeshSpawn (const FVector &ForwardVec, const FVector &UpVect, const int SegmentID, const float DistanceA, const float DistanceB, USplineMeshComponent *RefMesh)
	Function that is triggered after placing each mesh with corresponding values.
int	Num () const
	Current amount of meshes stored (may count invalid).
void	ChangeMesh (TSoftObjectPtr< UStaticMesh > Mesh)
	Change static mesh in all Objects. (Updates only mesh's tangents).
void	GetMeshes (TArray< class USplineMeshComponent * > &OutArray) const
	Returns Copy of array containing only valid SplineMesh objects.
virtual void	SetMaterialsByIndex (const TArray< UMaterialInterface * > &materials)
	Applies materials from array to all meshes.
virtual void	CopySplinePoints (const USplineMeshedComponent *copyFrom)
	Copy spline points and curve.
virtual void	CopySplineAndMeshes (const USplineMeshedComponent *copyFrom)
	Copy spline points, curve and mesh properties.
void	MakeHelix (const FSplineHelixParams &HelixParams)
	Function that changes points to helix.
void	MakeSinus (const FSplineSinusParams &SinusParams)
	Function that changes points to sinus.
ASplineMeshActor *	SpawnMeshStaticClone (const USplineMeshComponent *Mesh)
	Spawns static actor in world and copies spline mesh properties.
TArray< ASplineMeshActor * >	CloneSplineToStaticActors ()
	clone of all meshes in spline and make them static object
void	SetSmoothnessAtPoint (int keyIndex, float smoothness=1.f, float ZRotationDeg=0.f)
	Change single point to have given smoothness and rotation. Does not update actor!
void	SetSmoothnessAtAllPoints (float smoothness=1.f, float ZRotationDeg=0.f)
	Change spline all points to have desired params.
void	OffsetAllPoints (const FVector &RelativeOffset)
	Function used to move all spline points with given relative offset.
void	Sharp ()
	Function will adjust tangents of all points to make it sharp.
void	Soft ()
	Function will adjust tangents of all points to make it look smooth.
void	Smooth ()
	Function will set all points type to Curve (they auto update tangents).
void	ExtraCurvy ()
	Function will adjust tangents of all points to make it look extra smooth and very curvy.
void	CustomTangents ()
	Function will adjust tangents of single point using TangentToolParams variable.
void	CustomTangentsAllPoints ()
	Function will adjust tangents of all spline points using TangentToolParams variable.
bool	DetectObjectsAlongSpline (TArray< FSplineMeshedOverlapResult > &DetectResults, FSplineDetectionTestParams DetectionParams) const
	Detection function that iterates along spline and does multiple checks. Function evaluates shape of given mesh.
void	DetectionFunction (TArray< FSplineMeshedOverlapResult > &DetectedObjects, UWorld *World, const FVector &LocationIn, const FQuat &RotationIn, const FSplineDetectionTestParams &ParamsIn) const
	Detection function's body, (can be customized), used by DetectObjectsAlongSpline. By default, it detects overlaps by object type.
FVector	GetSideOffset (const FVector &Fwd, const FVector &Up, float DistanceRight, float AngleDeg) const
	Calculate helix offset defined by forward Axis, Up axis and rotation Angle.
FVector	VectorFrom2Points (float distanceA, float distanceB, const TEnumAsByte< ESplineCoordinateSpace::Type > &CoordSpace=ESplineCoordinateSpace::World) const
	Get normalized vector between 2 points, points are clamped to spline length.
FVector	CalculateSplineUpVector (ESplineRotateMode Mode, const FVector &CurrentUp, const FVector &CurrentForward, const FVector &PrevUp, const FVector &UpParameter) const
	Function used to calculate UpVector from given vectors.

Static Public Member Functions
static void	ApplyParamsToMesh (const FYasiuSplineMeshParams &params, USplineMeshComponent *Mesh)
	Applies all parameters from struct to SplineMesh Object, without Update. Except ForwardDirection and StaticMesh.
static void	CopyMeshMaterials (const UMeshComponent *copyFrom, UMeshComponent *copyTo)
	Copy materials between meshes.

Public Attributes
FSplineSinusParams	SinusToolParams {}
	Parameters to create sinus spline in editor.
FSplineHelixParams	HelixToolParams {}
	Parameters to create helix spline in editor.
FSplineSmoothParams	TangentToolParams {}
	Parameter used by editor commands.

Protected Attributes
TArray< TObjectPtr< USplineMeshComponent > >	MeshesArray
	Array of created SplineMeshes.

Detailed Description

Core component that handles meshes spawning along spline.

Member Function Documentation

ChangeMesh()

void USplineMeshedComponent::ChangeMesh

(

TSoftObjectPtr< UStaticMesh >

Mesh

)

Change static mesh in all Objects. (Updates only mesh's tangents).

Warning

Does not change spacing.

Parameters

Mesh	Reference to mesh asset

CloneSplineToStaticActors()

TArray< ASplineMeshActor * > USplineMeshedComponent::CloneSplineToStaticActors

(

)

clone of all meshes in spline and make them static object

Returns

Array of actors spawned in world

DetectionFunction()

void USplineMeshedComponent::DetectionFunction	(	TArray< FSplineMeshedOverlapResult > &	DetectedObjects,
		UWorld *	World,
		const FVector &	LocationIn,
		const FQuat &	RotationIn,
		const FSplineDetectionTestParams &	ParamsIn ) const

Detection function's body, (can be customized), used by DetectObjectsAlongSpline. By default, it detects overlaps by object type.

Other objects must have Collision "Query" enabled and math collision channel in paramsIn

Note

Please aggregate detected object into DetectedObjects if you want proper results from DetectObjectsAlongSpline

Parameters

DetectedObjects	Output array, passed to top function.
World	World reference used to run detection
LocationIn	Location of detection
RotationIn	Rotation of detection
ParamsIn	Collection of params used for detection

DetectObjectsAlongSpline()

bool USplineMeshedComponent::DetectObjectsAlongSpline	(	TArray< FSplineMeshedOverlapResult > &	DetectResults,
		FSplineDetectionTestParams	DetectionParams ) const

Detection function that iterates along spline and does multiple checks. Function evaluates shape of given mesh.

By default, it detects Overlaps, objects must have Collision "Query" enabled (Physics is not required).

Returns all objects of given type, ignoring their ChannelType responses.

Note

Detection can be modified (by Injection)

In BP please override DetectionFunction

In C++ override DetectionFunction_Implementation, it is BlueprintNativeEvent

Parameters

DetectResults	Output array of detected actors
DetectionParams	Struct that has test parameters

Returns

True if detected at least one object

GetMeshes()

void USplineMeshedComponent::GetMeshes

(

TArray< class USplineMeshComponent * > &

OutArray

)

const

Returns Copy of array containing only valid SplineMesh objects.

Parameters

OutArray

Array with pointers to all valid objects.

OffsetAllPoints()

void USplineMeshedComponent::OffsetAllPoints

(

const FVector &

RelativeOffset

)

Function used to move all spline points with given relative offset.

Parameters

RelativeOffset

Relative offset to apply

OnMeshSpawn()

void USplineMeshedComponent::OnMeshSpawn	(	const FVector &	ForwardVec,
		const FVector &	UpVect,
		const int	SegmentID,
		const float	DistanceA,
		const float	DistanceB,
		USplineMeshComponent *	RefMesh )

Function that is triggered after placing each mesh with corresponding values.

Use this function to modify placing behaviour

Note

For Customization (Injection)

In BP please override OnMeshSpawn

In C++ override OnMeshSpawn_Implementation, it is BlueprintNativeEvent

Parameters

ForwardVec	Vector from mesh start to mesh end
UpVect	Spline's up vector for this mesh
SegmentID	Mesh number, indexed from <0, N-1>
DistanceA	Spline distance along spline at start of mesh in unreal units
DistanceB	Spline distance along spline at end of mesh in unreal units
RefMesh	Spline Mesh reference for custom edits

PlaceMeshesAlongSpline()

void USplineMeshedComponent::PlaceMeshesAlongSpline	(	UStaticMesh *	Mesh,
		const FSplineMeshedSpawnParams	SpawnParameters )

Spawn meshes along spline by given params. Override if you intend to clear/set variables before spawning meshes.

Parameters

Mesh	Static mesh object to be used
SpawnParameters	Parameters how mesh should spawn

SetMaterialsByIndex()

virtual void USplineMeshedComponent::SetMaterialsByIndex ( const TArray< UMaterialInterface * > & materials )

virtual

Applies materials from array to all meshes.

Materials are applied to each slot defined by array <0, N>.

SetSmoothnessAtAllPoints()

void USplineMeshedComponent::SetSmoothnessAtAllPoints	(	float	smoothness = 1.f,
		float	ZRotationDeg = 0.f )

Change spline all points to have desired params.

Parameters

smoothness	How smooth should spline be, 0 means sharp spline, 1 means smooth. Works with negative values
ZRotationDeg	Angle in degrees. Rotation around Z axis for cool effects

SetSmoothnessAtPoint()

void USplineMeshedComponent::SetSmoothnessAtPoint	(	int	keyIndex,
		float	smoothness = 1.f,
		float	ZRotationDeg = 0.f )

Change single point to have given smoothness and rotation. Does not update actor!

Parameters

keyIndex	Spline point index
smoothness	How smooth should spline be, 0 means sharp spline, 1 means smooth. Works with negative values
ZRotationDeg	Angle in degrees. Rotation around Z axis for cool effects

VectorFrom2Points()

FVector USplineMeshedComponent::VectorFrom2Points	(	float	distanceA,
		float	distanceB,
		const TEnumAsByte< ESplineCoordinateSpace::Type > &	CoordSpace = ESplineCoordinateSpace::World ) const

Get normalized vector between 2 points, points are clamped to spline length.

Parameters

distanceA	distance along spline for point A
distanceB	distance along spline for point B
CoordSpace	Coordinate space, World or Local

Returns

---

The documentation for this class was generated from the following file:

• Source/YasiuSplineMeshed/Public/SplineMeshedComponent.h
